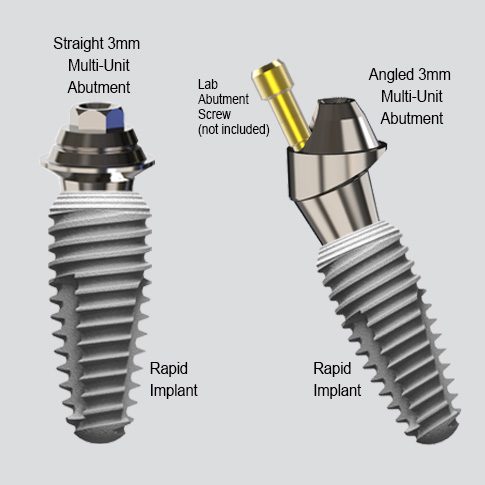

Multi-Unit Abutments (MUA)

  • Abutment for removable or screw-retained dentures for crowns, bridges and bars
  • Solid abutment with separate occlusal retaining screw
  • Photogrammetry compatible
  • Abutments cannot be altered
  • Only splinted and not to be used for single-tooth restoration
  • The angled abutments are supplied without prosthetic screws.
    (They must be ordered separately)
  • Available Gingival Heights: (GH) 1.0 – 2.0 – 3.0 – 4.0 – 5.0 mm
  • Available Angulations: 0° – 20°

2mm Platform – Red

Torque Recommendations

  • 20 NCM (Abutment); 10 NCM on prosthetic screw (2mm platform)

3mm Platform – Yellow

Torque Recommendations

  • 30 NCM (Abutment); 10 NCM on prosthetic screw (3mm platform)

Short Platform – Blue

Torque Recommendations

  • 20 NCM (Abutment); 10 NCM on prosthetic screw (Short platform)
